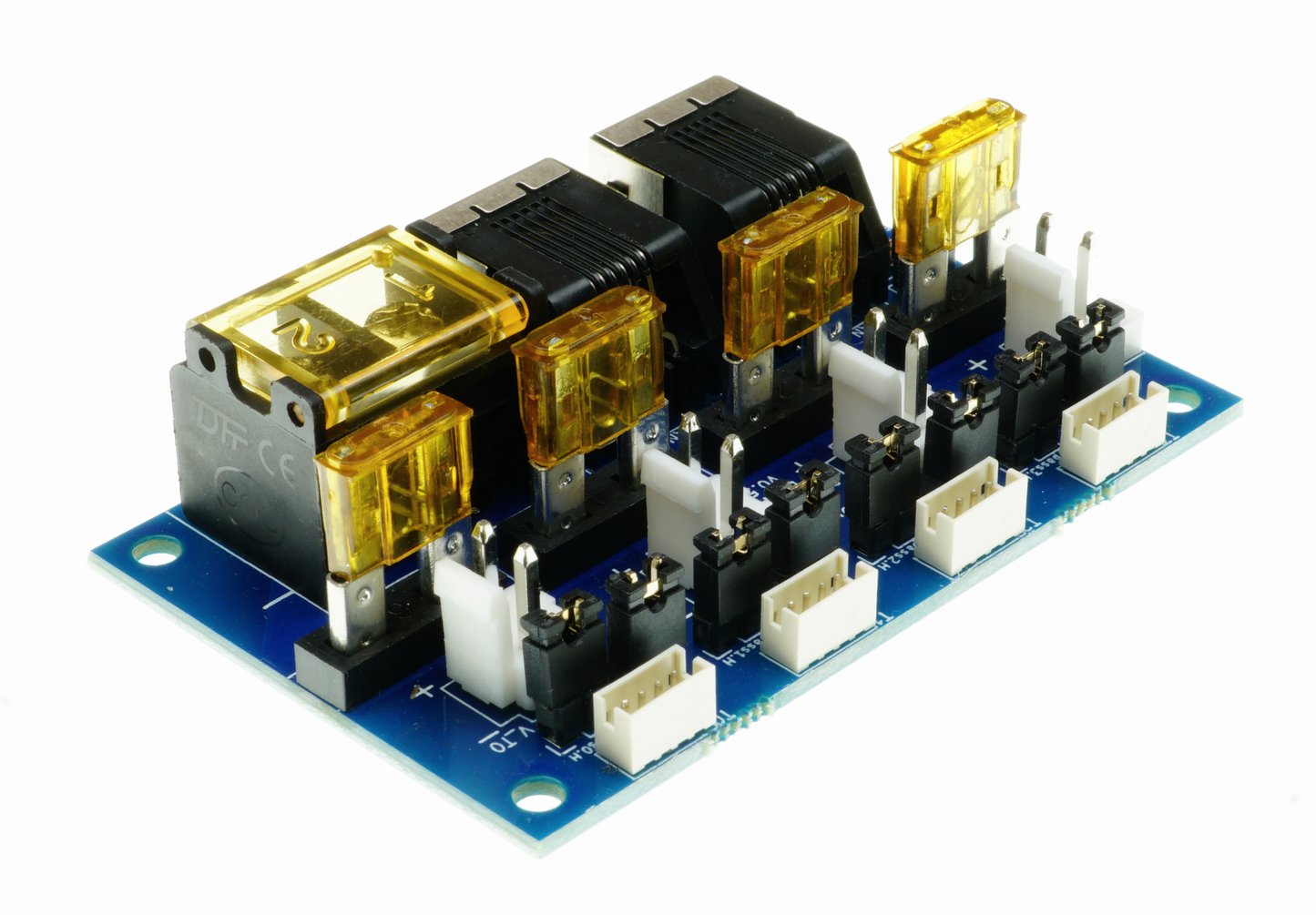

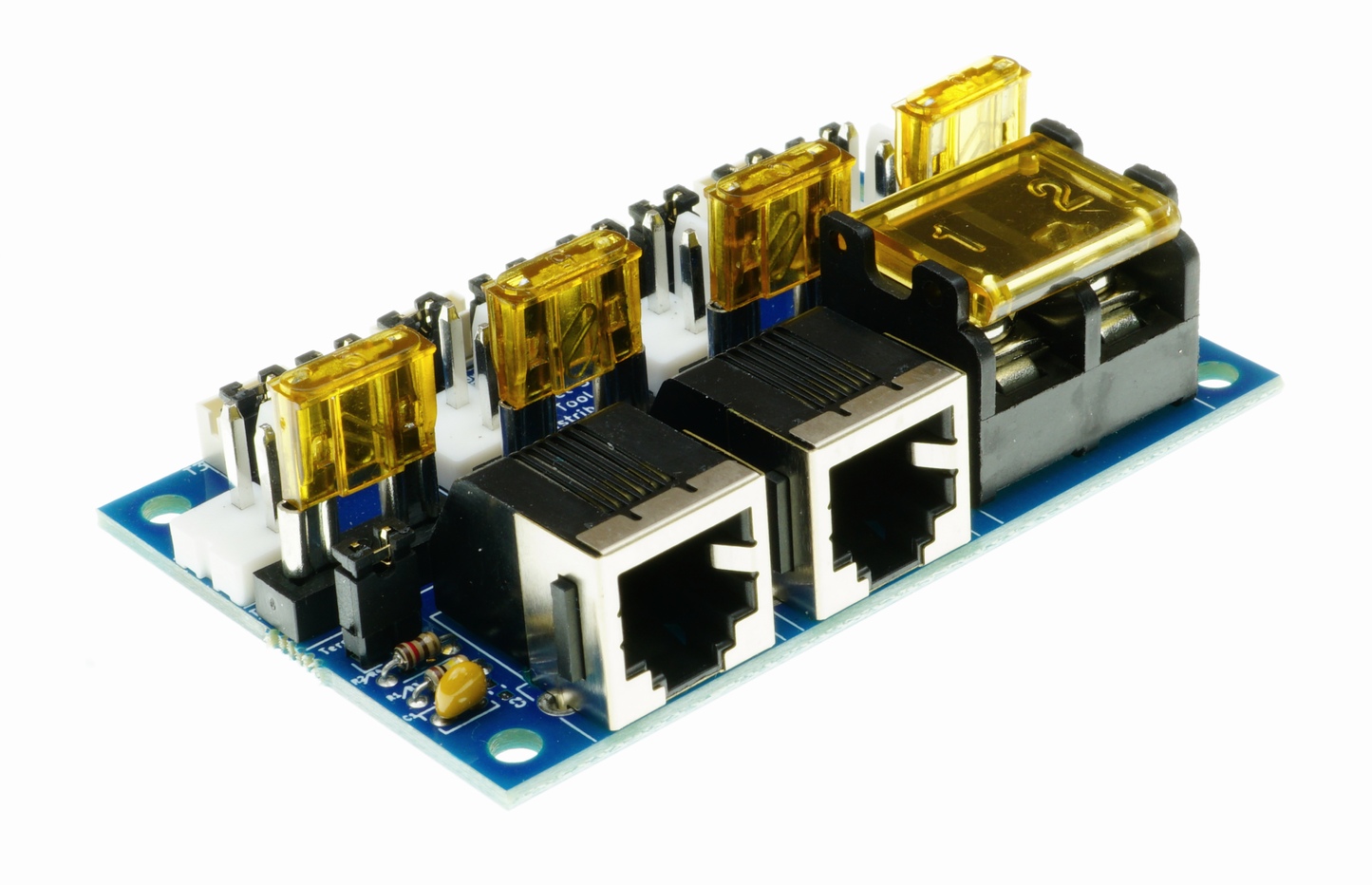

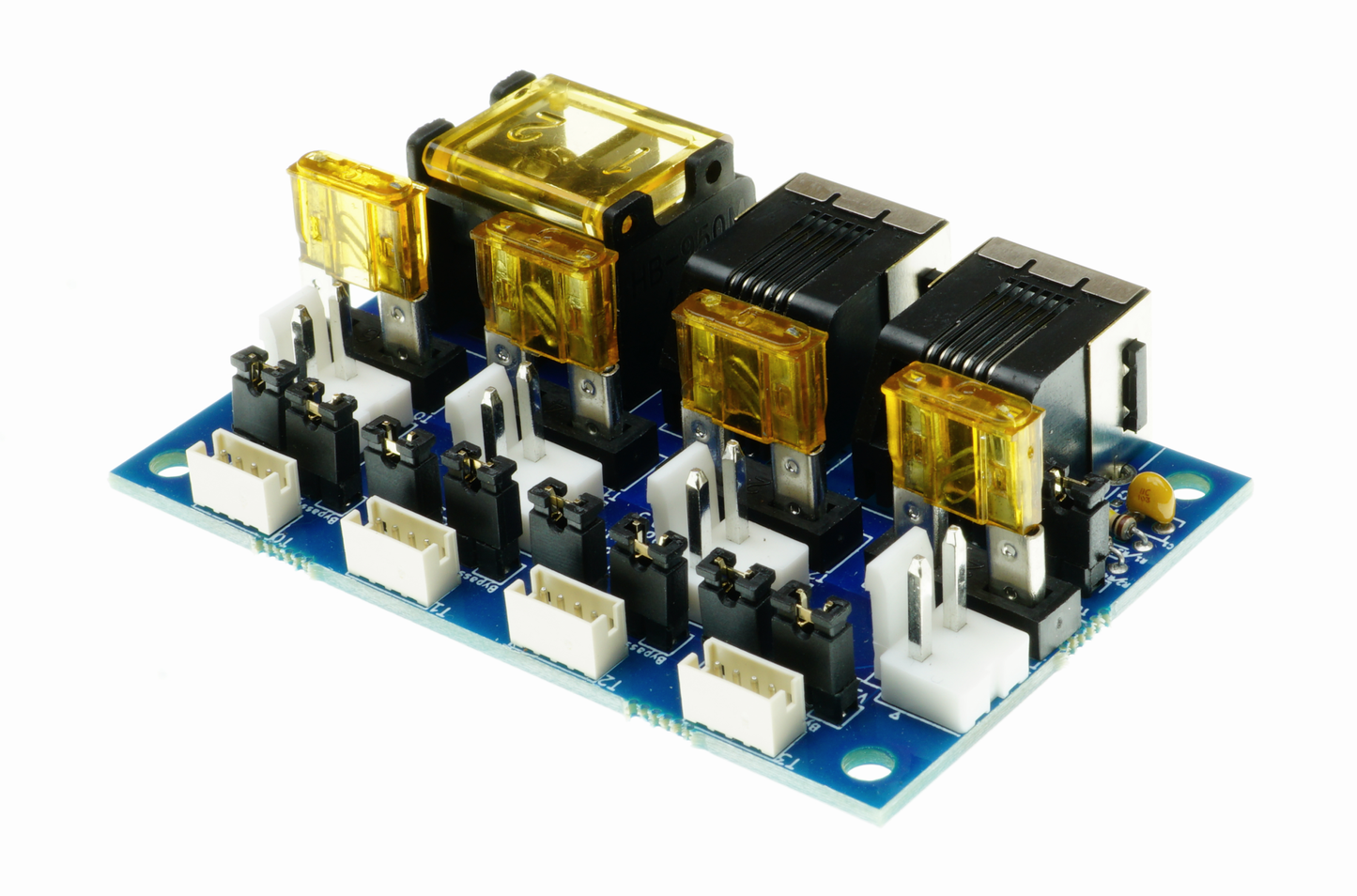

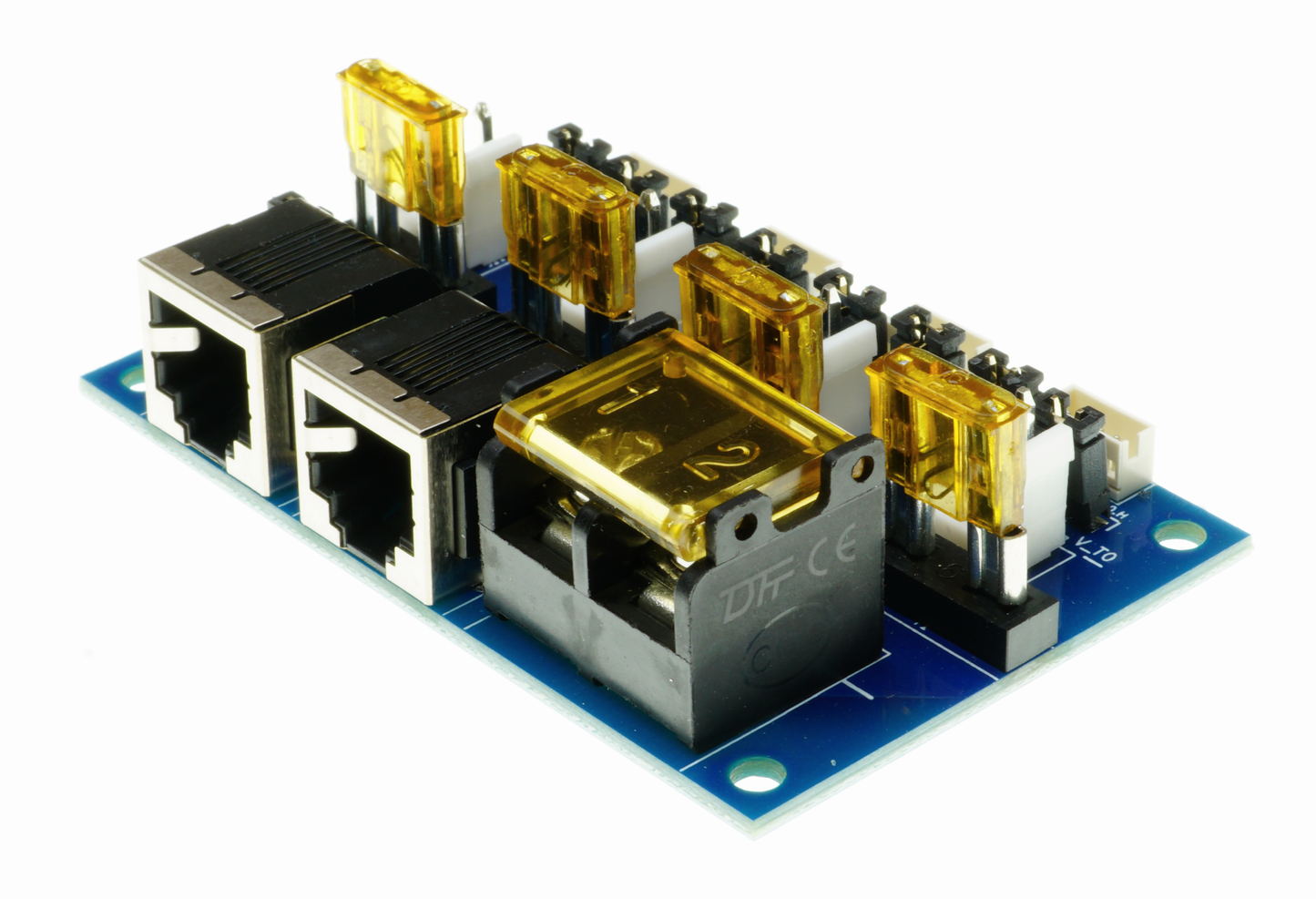

Duet 3 Tool Distribution Board v0.5
Duet 3 Tool Distribution Board v0.5
SKU:E-DUET-DUET-3-TOOL-DIST
Low stock
Couldn't load pickup availability
This board allows for the connection of up to 4 Duet 3 Toolboards to the Duet 3 Mainboard at one time, greatly simplifying the CAN-FD bus and power wiring.
Key Features:
- 2-way barrier strip for power in.
- Four 2-way JST VH connectors for power out to tool boards, individually fused.
- Two RJ11 connectors for CAN bus in/out to connect to Duet 3 main board and expansion boards.
- Four 4-pin JST ZH connectors to connect CAN bus to four Tool Boards.
- Four pairs of 2-pin jumpers to bypass unused tool board CAN connectors.
- CAN bus termination jumper, for use if the CAN_OUT RJ11 port is not used.
