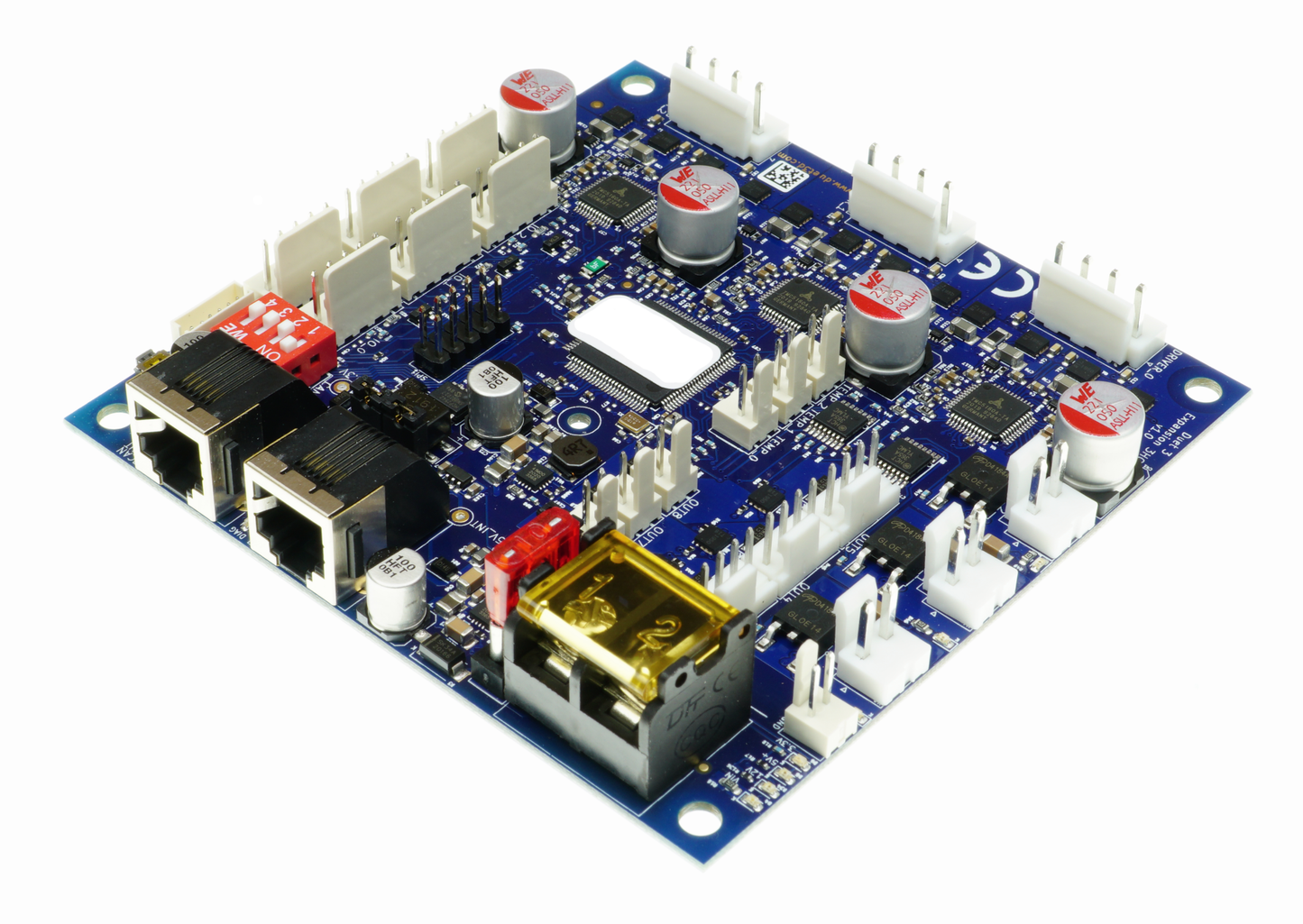

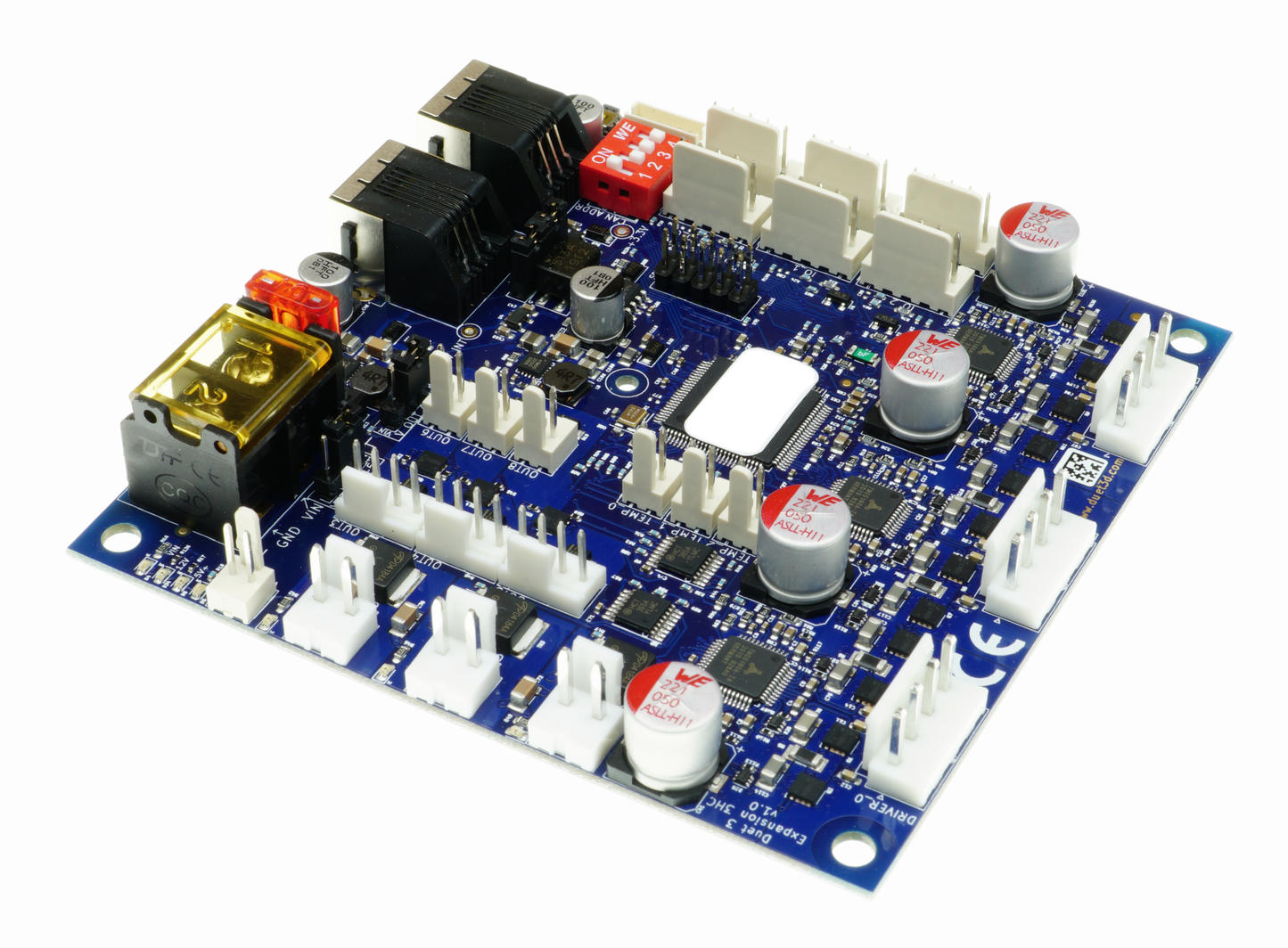

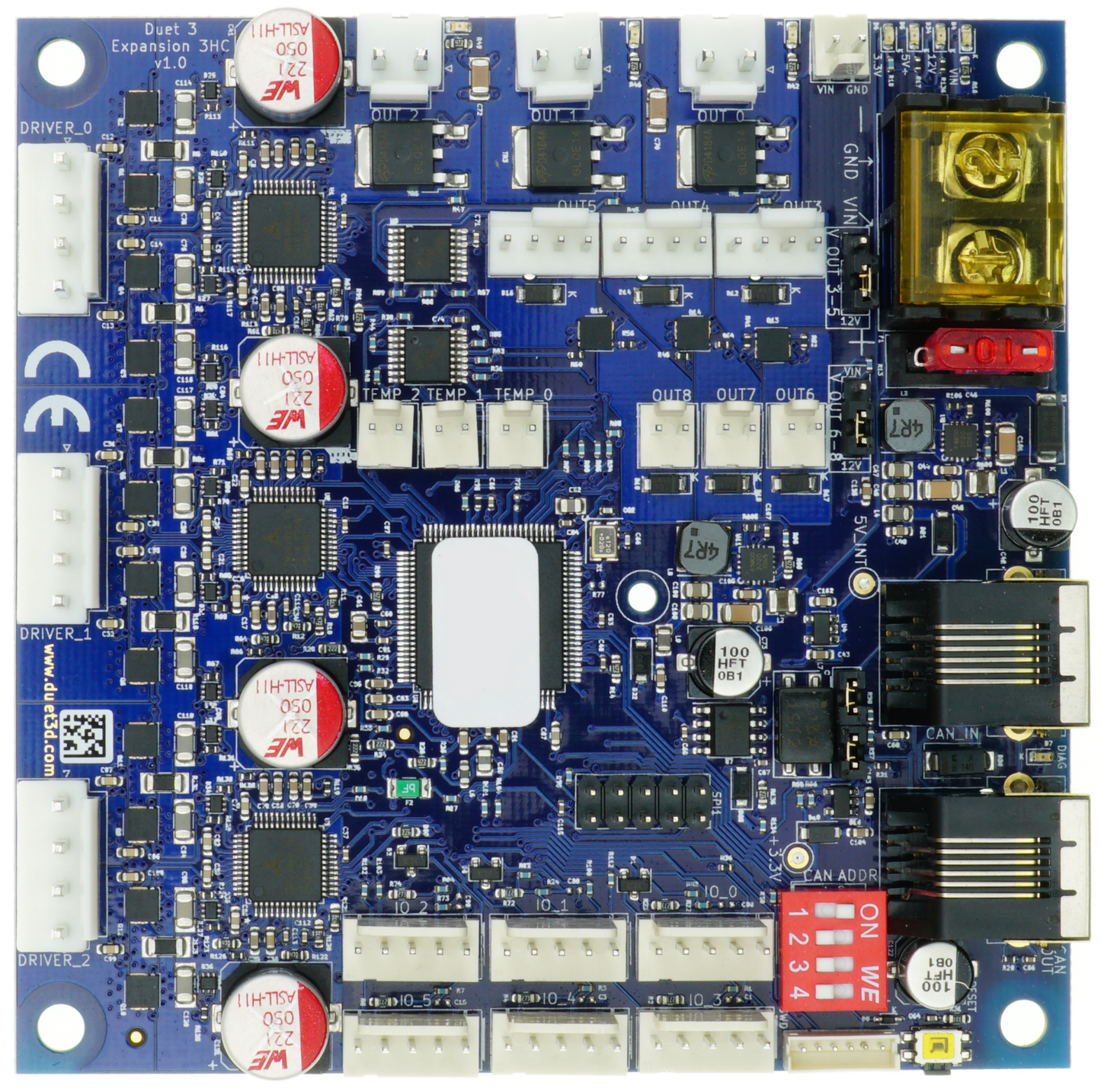

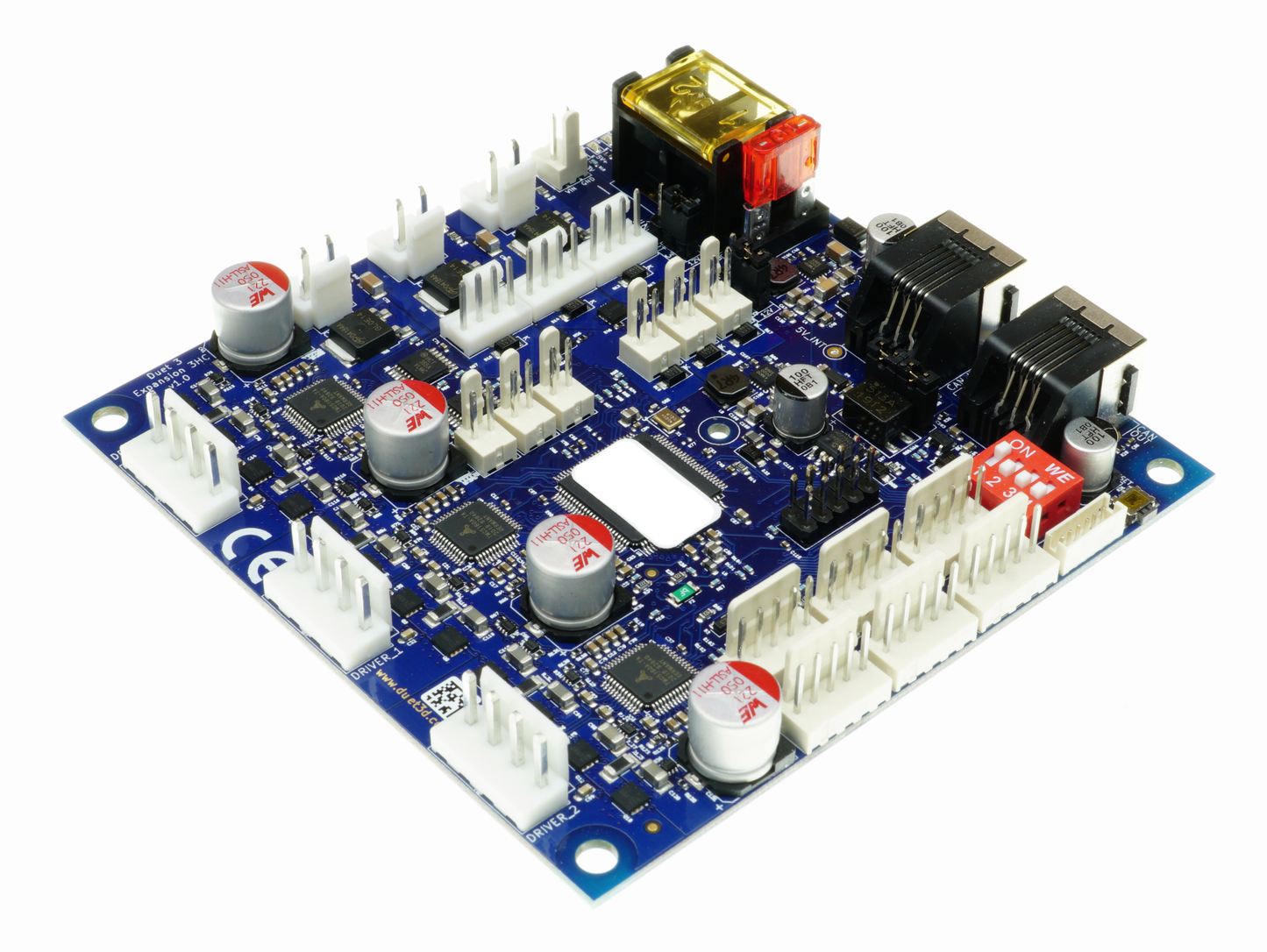

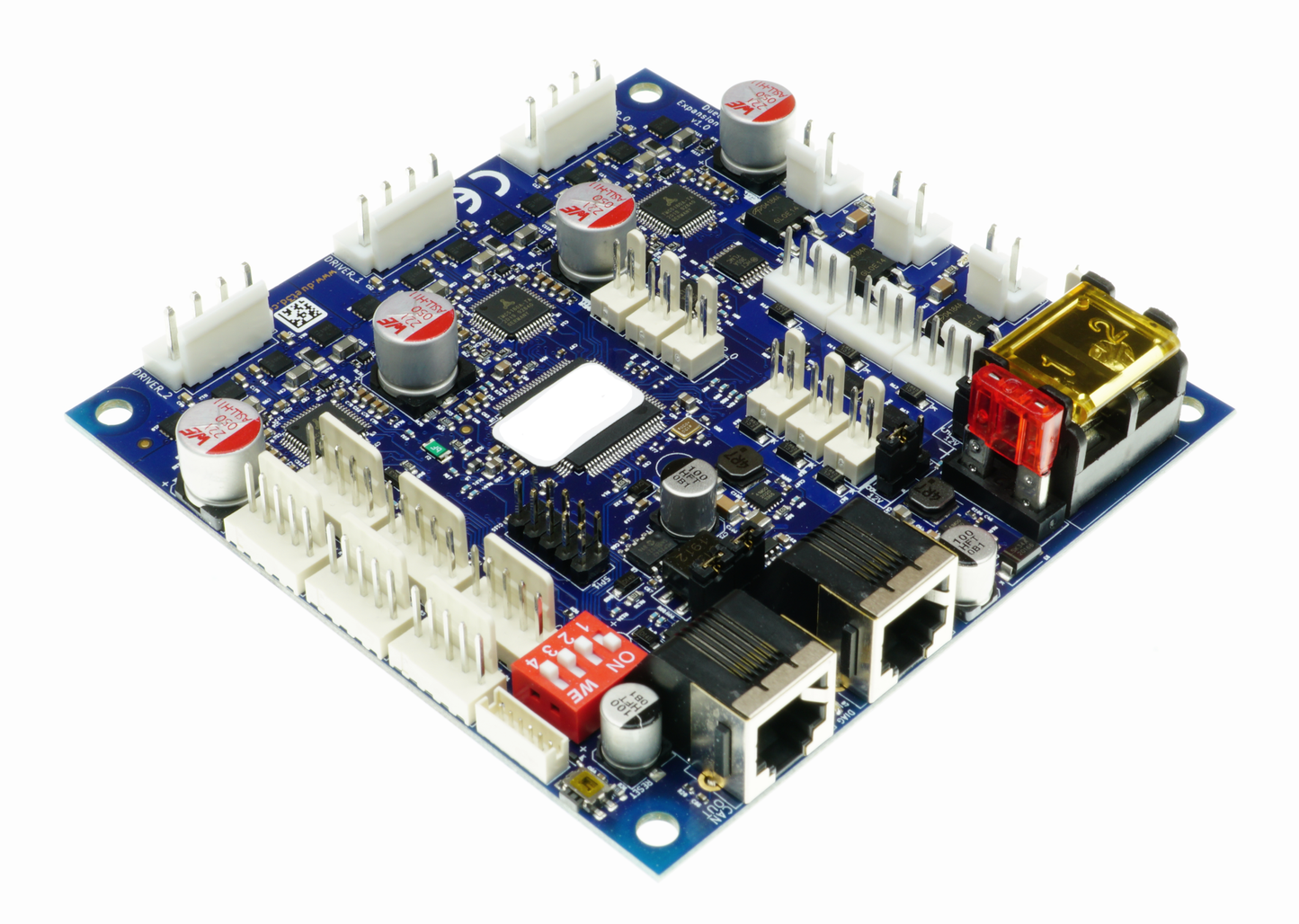

Duet 3 Expansion Board 3HC v1.01

The Duet 3 family provides control for a wide range of machines including 3D printers, CNCs, lasercutters and more, building on Duet3D's experience in developing the most flexible and expandable 3d printer control solutions. The overall aim with the Duet 3 series is to allow for maximum flexibility of machine design through highly capable main boards, expansion boards, smart tool boards and custom expansion modules.

See the documentation links below for a full feature set: in summary:

• Dedicated 32 Bit Processor (ARM Cortex M4F @120 Mhz)
• CAN-FD bus connection to the Duet 3 Mainboard. This allows for many expansion boards to be connected. The initial target is support for up to 8 x 3 channel expansion boards (another 24 stepper channels).
• 3 next generation Trinamic 5160 stepper drivers running at up to 4.45A RMS, 6.3A peak with firmware control of the full feature set including up to 256 microstepping, StallGuard 2 and StealthChop 2
• 9 PWM outputs of varying current capacities support to support, for example, 3 extruders and 6 fans.
• 6 IO ports for endstops, probes, filament monitors and other sensors.
• 3 Thermistor/PT1000 inputs and support for 4 PT100/Thermocouple inputs via the optional daughterboards.
• Support for a wide range of Z probes including DC42's IR Z probe and the Duet3D Smart Effector for delta printers.

Documentation.
The documentation for Duet 3 is under development: initial information is here:

• Duet 3 Expansion 3HC board
