Duet PanelDue Displays
Duet PanelDue Displays
SKU:E-DUET-P-DUE-5
Low stock
Couldn't load pickup availability

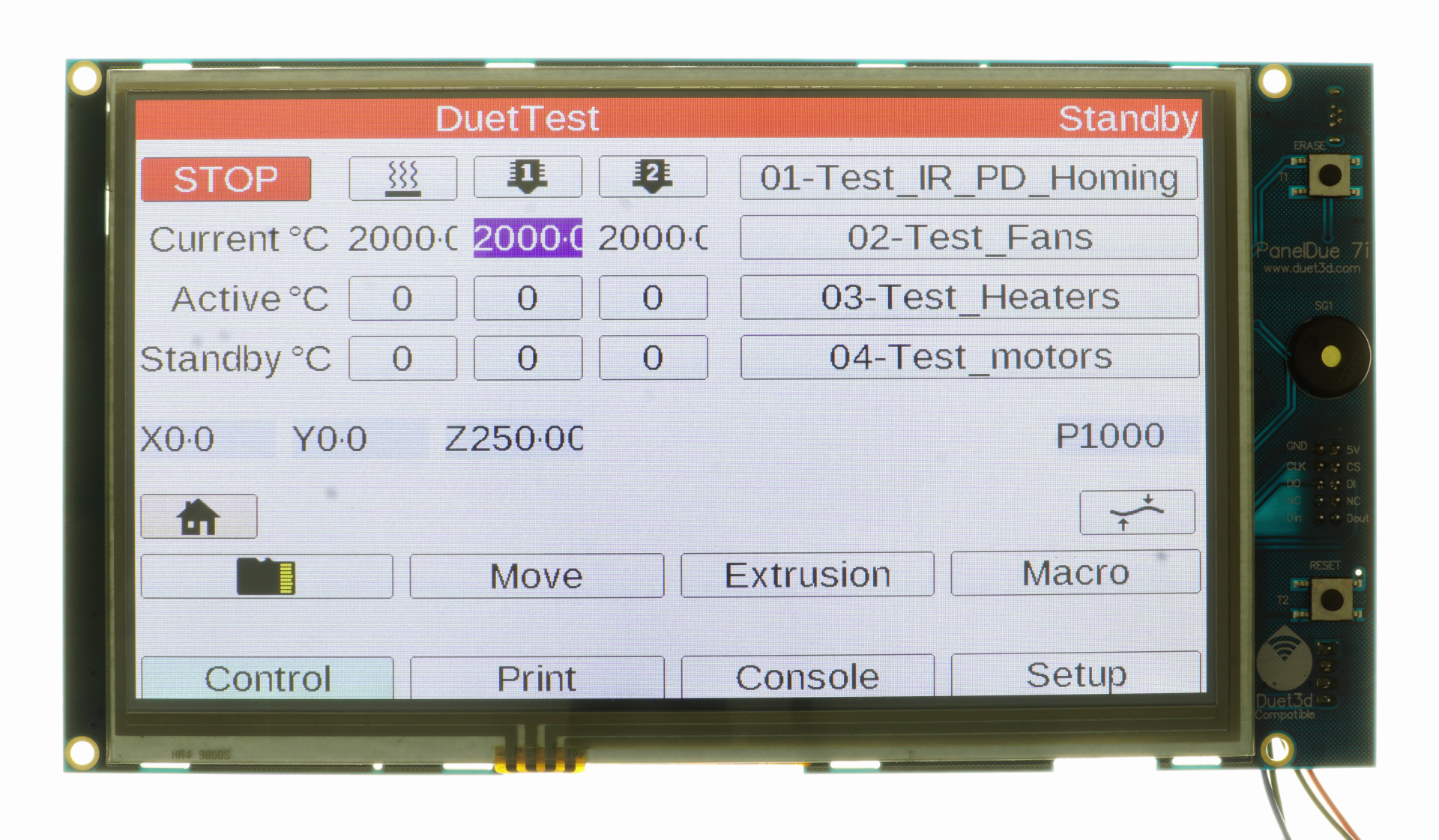

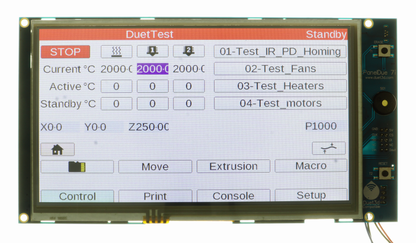

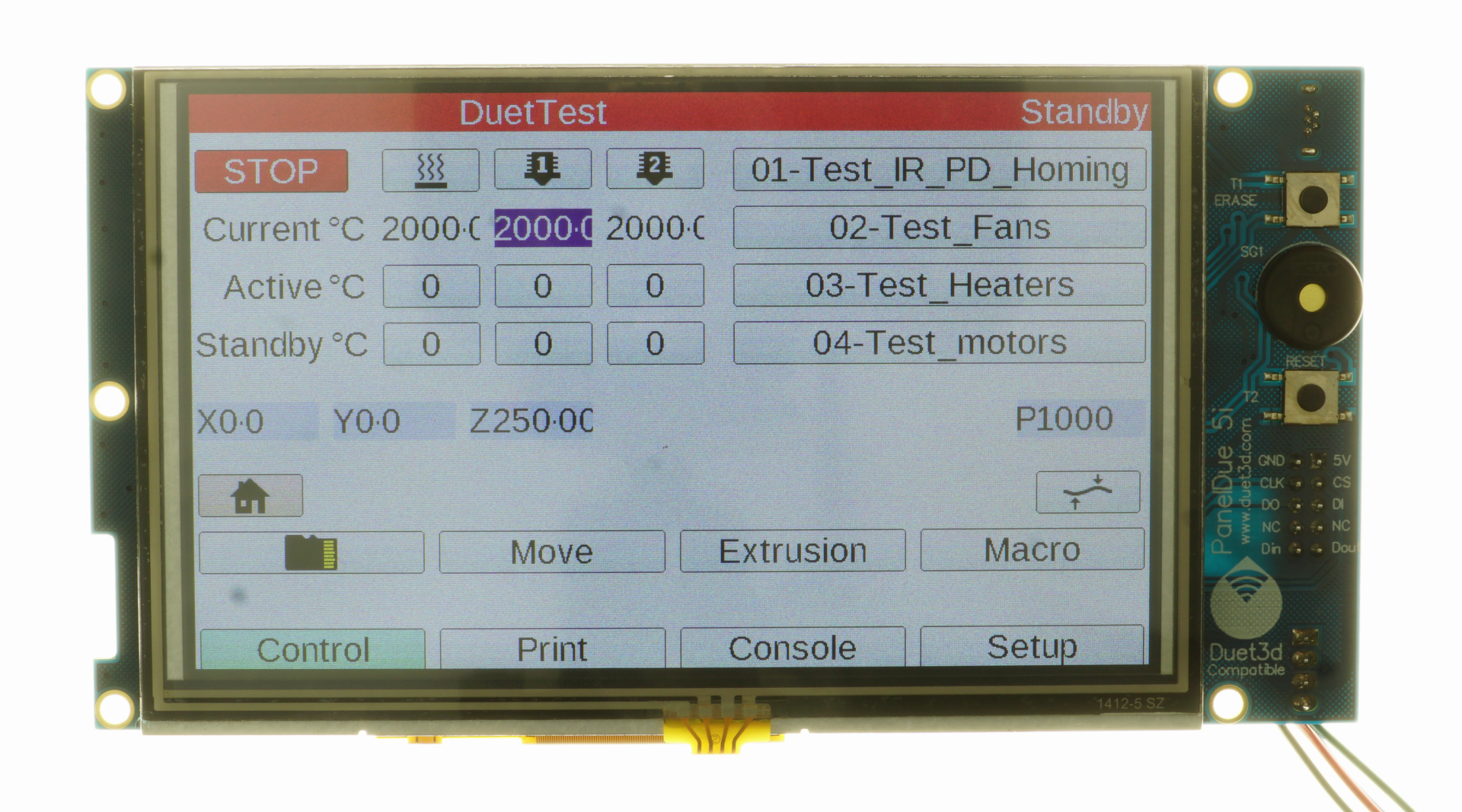

Duet PanelDue displays
The PanelDue are full-colour touch screen controllers for the Duet and other 3D printing electronics that support them.
Available in 2 sizes: 5”(800x400mm), and 7”(800x400mm)
The PanelDue displays run off 5V power from the host 3D printer controller. Uses a 2-wire async serial interface with 3.3V signal level (5V tolerant input).
A 10-way ribbon cable connector allows a connection of an external SD card socket. (on version 2.0 PanelDue boards).
A 4-way cable connects the PanelDue to your controller board for the serial and power connections.
Stocked versions:
PanelDue 7i v1.0
PanelDue 5i v1.0
Controller and Cable only
